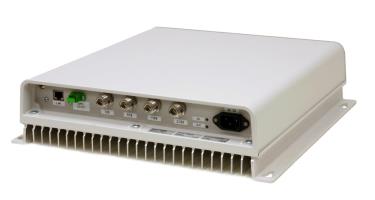

Remotes Bird DDL

Remotes Bird DDL
Klik pada gambar untuk memperbesar
Harga
Rp 12.345.678,00
Berat
12000 gram
Ketersediaan Barang
5
Beli Remotes Bird DDL

Lebih Lengkap Mengenai Remotes Bird DDL

DDL Series

Bird remote units are high performing, wideband amplifiers. An industry leader in DAS solutions, the Bird fiber optic system allows controlling a mixture of remote families (DDL, DDR, DDS, DDH and DDU) from a single Master Unit to reduce the head end footprint and maximize usage of the fiber backbone infrastructure. Multiple frequency bands and amplifiers can be contained in a single chassis.

KEY FEATURES

• Able to mix amplifier types in a single remote housing
• Radio access technology agnostic
• Multi-operator
• WDM, CWDM and non-multiplexed options
• True receive diversity and MIMO options
• Completely software monitored and controlled
• Wide band amplification
• External DB-9 alarm connection
• RoHS compliant



GENERAL SPECIFICATIONS

  • Noise Figure: 3 dB
  • Delay excluding optical fiber: < 0.5 μs
  • Power Supply - Standard: 85 – 264 VAC
  • Power Supply - Optional: –48 VDC
  • Operating Temperature: -13 - +131 °F (-25 - +55 °C)
  • Housing: IP43
SpecificationsDDL (Single Band)DDL (Dual Band)
DDL (Triple Band)DDL (Quad Band)
Size inches 15 x 15 x 3.5  15 x 15 x 3.5 15 x 15 x 3.5
 15 x 15 x 3.5
Size mm 381 x 381 x 89 381 x 381 x 89 381 x 381 x 89 381 x 381 x 89
Estimated Weight (lbs/kg) 26.5/12 26.5/12 26.5/12 26.5/12
Power Consumption - W (Typical)  35 50 65 80


Frequency Bands - FCC/IC Compliance

Band3GPP BandUplinkDownlinkMax Composite (dBm)
LTE700 Full 12/13

698-716/776-787

 728-757
 23
850 Cellular 5 824-849 869-894 23
PCS 1900 25 1850-1915 1930-1995 23
AWS-3 2100 4, 10 1710-1780 2110-2180 23
