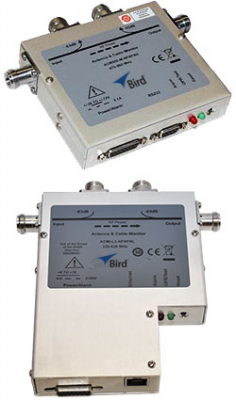

ACM Series, Antenna & Cable Monitors Bird
Harga | Rp 12.345.678,00 |
Berat | 900 gram |
Ketersediaan Barang | 5 |
Lebih Lengkap Mengenai ACM Series, Antenna & Cable Monitors Bird
ACM Series, Antenna & Cable Monitors are the solution for monitoring your transmission antenna systems. Service providers and self maintained end user’s can rely on this monitor and alarm to keep their critical sites up and running. Designed to detect antenna and cable faults that transmitter-internal VSWR monitors may not detect, it also provides accurate in-line power measurement functionality.
- Models available from 136-225 MHz, 225-520 MHz, 470-960 MHz, 960-2400 MHz Accurately monitors your antenna and cable system VSWR levels.
- Integral coupler with high directivity optimizes measurement accuracy. Measures small changes in antenna VSWR with high feeder and interface losses.
- Provides alarms if an antenna or cable failure should occur.
- Available with Ethernet or serial interface.
- Monitors transmitter output power and includes low or high power alarms.
- Measures true average power of signals with high peak-to-average characteristics - works with any modulation!
- Included as standard Push-To-Talk (PTT) input to avoid false alarm triggering when the transmitter (radio) is not keyed.
Applications:
Includes 3G, AMPS., Broadcast, CHAM, CHAM 2000, DSC, EDGE, Government, GRIS, GUM, iden, Industrial, NYSSA, Microwave, Military, Paging, Public Safety, Rail, SMUR, TEMA, Tetrapolar, Trunking, UHF, Utilities, VHF, W-CHAM and WLL .
ACM Part Number Definition
Model/ Power Range (Watts) | Freq Range (MHz) | RF Input Conn. | RF Output Conn. | Monitor Port | Input Voltage |
---|---|---|---|---|---|
ACM = 2.5 - 100 | L1 = 136 - 225 | NM = N Male | NM = N Male | N = N Female | L= + (11 to 25) VDC |
ACM 500 = 12.5 - 500 | L2 = 225 - 520 | NF = N Female | NF = N Female | T = TNC Female | H = ± (36 to 72) VDC |
M = 470 - 960 | DM = 7/16 DIN Male | DM = 7/16 DIN Male | B = BNC Female | ||
H = 960 - 2400 * | DF = 7/16 DIN Female | DF = 7/16 DIN Female |
* “H” Frequency Band Unavailable with the ACM 500 Version.
ACMI Part Number Definition
Model/ Power Range (Watts) | Freq Range (MHz) | RF Input Conn. | RF Output Conn. | Monitor Port | Input Voltage |
---|---|---|---|---|---|
ACMI = 2.5 - 100 | L1 = 136 - 225 | NM = N Male | NM = N Male | N = N Female | L= + (8 to 18) VDC |
ACMI 500 = 12.5 - 500 | L2 = 225 - 520 | NF = N Female | NF = N Female | T = TNC Female | M = ± (18 to 36) VDC |
M = 470 - 960 | DM = 7/16 DIN Male | DM = 7/16 DIN Male | B = BNC Female | H = ± (36 to 72) VDC | |
H = 960 - 2400 * | DF = 7/16 DIN Female | DF = 7/16 DIN Female |
* “H” Frequency Band Unavailable with 500 W Version.
