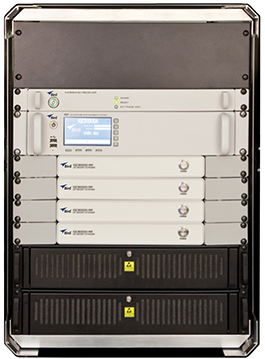

IQC91000A Bird

IQC91000A Bird
Klik pada gambar untuk memperbesar
Harga
Rp 12.345.678,00
Berat
35000 gram
Ketersediaan Barang
5
Beli IQC91000A Bird

Lebih Lengkap Mengenai IQC91000A Bird

IQC91000A

Next generation defense electronic systems occupy large information bandwidths to meet demanding mission requirements. Performance validation of these designs requires extensive testing on the bench, in the chamber and on the range to ensure system readiness prior to deployment. The IQC91000A was designed to record such modern waveforms and isolate anomalies that often occur during system integration and real-world validation testing. With its 12 bit fidelity, the IQC91000A can continuously record 90 minutes of 1000 MHz wide waveforms to ensure designers capture transient and unexpected events.

FEATURES

  • 1000 MHz IQ record and playback bandwidth.
  • 500 MHz to 18 GHz frequency coverage, 40 GHz option available.
  • 90 minutes of continuous record and playback time.
  • High-speed data offload for post-processing in Matlab®, as well as other popular VSA tools.
  • Sophisticated triggers and markers to time-tag and geo-tag signal events.
