200-DD Series

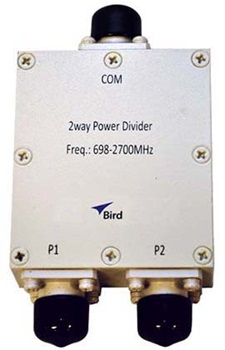

The 2, 3, 4 way low PIM splitters provide equal splitting or combining of signals with minimal losses over the splitting loss.

Item #200-DD-FFN-2200-DD-FFN-3200-DD-FFN-4
Frequency Range 698 to 2700 MHz 698 to 2700 MHz 698 to 2700 MHz
Insertion Loss 0.4 dB max 0.6 dB max 0.7 dB max
Return Loss 20 dB min 14.0 dB min 18.0 dB min
Isolation 20 dB min 14.0 dB min 18.0 dB min
Power Rating Input 200 W 200 W 200 W
PIM 153 dBc min ( 2 tone @ 43 dBm) 153 dBc min ( 2 tone @ 43 dBm) 153 dBc min ( 2 tone @ 43 dBm)
Impedance 50Ω nominal 50Ω nominal 50Ω nominal
Operating Temperature -20°C ~ +60°C -20°C ~ +60°C -20°C ~ +60°C
Dimensions 73 x 65 x 23 mm 145 x 95 x 23 mm 123 x 125 x 23 mm
Connector N-Female N-Female N-Female
Finish Light Gray Powder Coat Light Gray Powder Coat Light Gray Powder Coat
