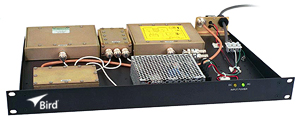

746-901 MHz, Receiver Multicoupler-42-83A-01 Series Bird

746-901 MHz, Receiver Multicoupler-42-83A-01 Series Bird
Klik pada gambar untuk memperbesar
Harga
Rp 12.345.678,00
Berat
8500 gram
Ketersediaan Barang
5
Beli 746-901 MHz, Receiver Multicoupler-42-83A-01 Series Bird

Lebih Lengkap Mengenai 746-901 MHz, Receiver Multicoupler-42-83A-01 Series Bird

42-83A-01 Series

42-83A-01 Series, 746-901 MHz, Receiver Multicouplers provide unequalled performance in a 1-rack unit (1-3/4 inch) space-saving package. The high performance LNA ’s exhibit a very low noise figure while providing a (100% measured) 3rd order output intercept point in excess of +40 dBm. The multicouplers are designed with a minimum excess gain of 10 dB which gives maximum sensitivity in rural applications. All the units are designed for ease of expansion, with no change in system gain in most cases. Three basic models cover the most popular applications from 118 - 901 MHz.

Consult our comprehensive RF component and accessories catalog for Receiver Multicoupler Systems components such as LNA’s and power dividers for special needs you may have. All Bird Receiver Multicouplers are easily expandable by either adding additional power dividers to the existing chassis or by addition of a 1-rack unit deck. The 16-channel Bnc models have 2 terminated BNC connectors for non-invasive expansion of up to 16 additional outputs in 8-output blocks, with no change in performance or specifications. All necessary cables with attached connectors are included in each kit.

  • Space-saving, 19” 1 RU rack mount design
  • Designed and manufactured high-performance LNA
  • Auto-Ranging AC Power, 85-264 VAC 50/60 Hz / 22-30 VDC
42-83A-01 Series Receiver Multicoupler
Model NumberNumber of ChannelsSystem Gain (Typical) *Connectors (In/Out)
42-83A-01-04N 4 22 dB N / N
42-83A-01-08N 8 19 dB N / N
42-83A-01-12N 12 16 dB N / N
42-83A-01-08 8 19 dB N / BNC
42-83A-01 16 16 dB N / BNC
