Cellular Repeater Bird-DLR600
Klik pada gambar untuk memperbesar
| Harga | Rp 12.345.678,00 |
| Berat | 1400 gram |
| Ketersediaan Barang | 5 |
Lebih Lengkap Mengenai Cellular Repeater Bird-DLR600
DLR600

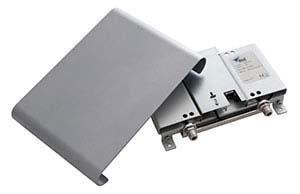

Bird's DLR600 repeater platform is a band selective low power repeater platform designed for smart and easy coverage enhancement in smaller areas.
KEY FEATURES
- Low cost with high performance
- Small size and lightweight for easy installation
- Variable bandwidth up to 35 MHz depending on configuration
- High selectivity using SAW technology
- Optimal performance and minimal interference with self oscillation protection, fast AGC and link symmetry functionality.
- Operational parameters are set in a web interface and only a web browser is needed for control
- Remote control via Ethernet or Deltanodes Remote GateWay
- Alarms can be forwarded via SNMP to any maintenance centre
- Complies to the RoHS directive 2002-95-EC
General Specifications
Gain: 40 - 70 dB in 1dB steps
Noise Figure: < 5 dB
Delay: < 7 µs
Power Supply (Optional): 12 - 30 VDC
Power Supply Included: 100-240 VAC
Power Consumption DC: 12-28V, < 35 W
Dimensions (WxDxH): 11.8"x2"x8.3" (300x50x210 mm)
Weight: 3 lbs/1.4 kg
Operating Temperature: DC Power, -25 - +55 ºC
Operating Temperature: AC Power, 0 - +40 ºC
Enclosure: IP42
Connectors: SMA or N-Type
AVAILABLE PRODUCTS, European Cellular
| Product | System | UL Frequency Range | DL Frequency Range | Pout DL/UL, dBm (Composite) | Standard |
|---|---|---|---|---|---|
| DLR601 | TETRA, Public Safety |
380-385 | 390-395 | 13 |
ETSI |
| DLR602 | TETRA, Commercial |
410-415 | 420-425 | 13 |
ETSI |
| DLR603 | TETRA, Commercial |
415-420 | 425-430 | 13 | ETSI |
| DLR604 | CDMA450 |
453-457.5 | 463-467.5 | 13 | FCC |
| DLR606 | GSM-R |
876-880 | 921-925 | 13 | ETSI |
| DLR609 | EGSM900 |
880-915 | 925-960 | 13 | ETSI |
| DLR618 | GSM1800 |
1710-1785 | 1805-1880 | 13 | ETSI |
| DLR621 | UMTS |
1920-1980 | 2110-2170 | 13 | 3GPP |
