SCC9 Series

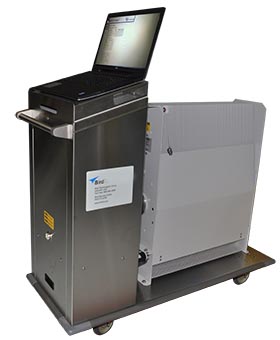

The NEW BDS Calibration Carts are designed for immediate, effortless use. They utilize the Bird Diagnostic System (BDS) in an innovative new way to enable extremely accurate measurement of RF power over a wide range of frequencies. It is ideal for semiconductor test applications where technicians and engineers need to calibrate a variety of generators at various frequencies. The New Cal Cart integrates the BDS along with a laptop running our customized software and a low reflection 50 Ω terminating RF load that can dissipate up to 10 kW. These components are installed on a cart for easy transportation and connected so that the only connections required are the AC and RF power. The cart is suitable for use in a clean room environment and is equipped with swivel casters for maximum maneuverability.

  • Designed for easy transportation and effortless use
  • Turnkey RF Measurements
  • High return loss ensures minimal power measurement error contribution
  • Available in international and domestic versions
  • Service plans available with Bird Service Center
ULTRA-STABLE SC13 LOADS
ModelFrequency Range and VSWRPower Input
8921SC13 DC to 28 MHz at 1.1 max.
(VSWR less than 1.05:1)
 5 kW
8931-115SC13 DC to 28 MHz at 1.1 max.
(VSWR less than 1.05:1)
10 kW
8931-230SC13 DC to 28 MHz at 1.1 max.
(VSWR less than 1.05:1)
10 kW

HIGH POWER LOADS

ModelFrequency Range and VSWRPower Input
8921 DC to 1 Ghz at 1.1 max. 5000 W continuous
8931-115 DC to 400 MHz at 1.15 max.
400 MHz to 1 GHz at 1.20 max.
10 kW continuous w/ blower on
2.5 kW continuous w/ blower off
8931-230 DC to 400 MHz at 1.15 max.
400 MHz to 1 Ghz at 1.20 max.
10 kW continuous w/ blower on
2.5 kW continuous w/ blower off
